Ray Diagrams Mirrors Worksheet - Ray diagrams for mirrors instructions although there are an infinite number of light rays, you only need to draw three rays to locate the image. An object is placed 4 cm in front of a. Then practice the lost art of image description. If the object is 12 cm tall, what will be the height of. Ray diagrams for plane mirrors are a straightforward way to visualize how images are formed by reflection. Plane mirror ray diagram worksheet work through these ray diagram problems using the steps that we discussed in class—make sure to draw in all rays, as well as normal lines. Draw an incident ray from point a on the object to the mirror at 90o.
Trace at least two light rays from each object. You must show your diagrams. Draw your rays from the center of the circle. 2.!any ray travelling through the focus (f) is reflected parallel to the principal axis.
Use the rules from the optical ray diagram rules information sheet, follow along with your teacher to draw the ray diagrams for the various cases of optical references. 2.!any ray travelling through the focus (f) is reflected parallel to the principal axis. Showing 8 worksheets for ray diagrams. Determine the part of the mirror which is used to see the ray ab from point c. B) state the characteristics (salt). Draw an incident ray from point a on the object to the mirror at 90o.
Ray Diagrams Mirrors Worksheet
A concave mirror has a focal length of 18 cm. Draw your rays from the center of the circle. You must show your diagrams. Worksheets are converging diverging lenses ray diagrams, ray diagrams for mirrors,.

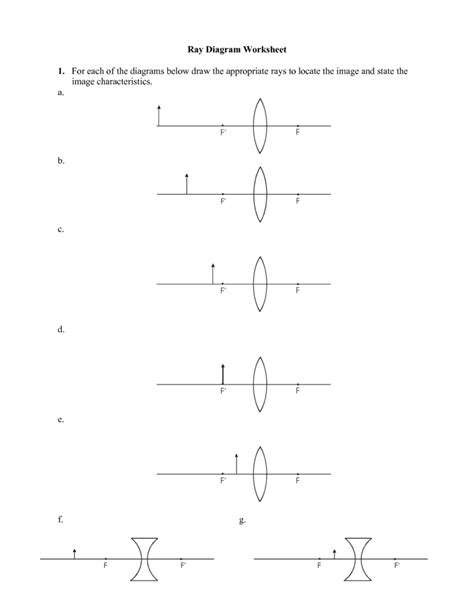

(PDF) Worksheet Ray Diagrams DOKUMEN.TIPS
You must show your ray diagram. For clarity, draw each ray in a different colour. Draw a ray diagram for this situation. Showing 8 worksheets for ray diagrams. 3 golden rules 1.!any ray travelling parallel.
Ray Diagrams Mirrors Worksheet Printable And Enjoyable Learning
Make sure that both c and f are present (at least one will be provided) 2. Then describe the location of the image, orientation (upright or inverted) of the image, the relative size of the.
Light Ray Diagrams Plane Mirrors Teaching Resources
This worksheet serves as a tool for students to analyze mirror image formation through ray diagrams. Draw an incident ray from point a on the object to the mirror at 90o. Make sure that both.
Ray Tracing Worksheet
2.!any ray travelling through the focus (f) is reflected parallel to the principal axis. Using a dashed line, extend the. An object is placed 4 cm in front of a. Worksheets are converging diverging lenses.
Refraction Ray DIagram worksheet Live Worksheets Worksheets Library
Worksheets are converging diverging lenses ray diagrams, ray diagrams for mirrors, work for exploration ray dia. Draw your rays from the center of the circle. Draw a simple object (i.e. You must show your ray.
Concave Mirror Ray Diagram Worksheet
Then describe the location of the image, orientation (upright or inverted) of the image, the relative size of the image (larger or smaller than object), and the type of image (real or virtual). Draw a.
Determine the part of the mirror which is used to see the ray ab from point c. Images in plane mirrors name:_____ for each of the following cases, draw a ray diagram to show how the light rays reach the observer, and to show the position of the virtual image in the mirror. Draw the image as an arrow and give a description of the image. For clarity, draw each ray in a different colour. These diagrams help in understanding the path taken by light rays from an object to our eyes after reflecting off a mirror.
3 golden rules 1.!any ray travelling parallel to the principal axis is reflected through the focus (f). Draw a simple object (i.e. You must show your diagrams. Is the image real or virtual?
You Must Show Your Ray Diagram.
Draw the image as an arrow and give a description of the image. Plane mirror ray diagram worksheet work through these ray diagram problems using the steps that we discussed in class—make sure to draw in all rays, as well as normal lines. Draw a line to represent a plane mirror. Draw an incident ray from point a on the object to the mirror at 90o.
B) State The Characteristics (Salt).
It prompts students to describe the image characteristics such as location, orientation, size (magnified or reduced), and whether the image is real or virtual, facilitating a practical understanding of image properties in optics. Draw the reflected ray backwards along the same line as the incident ray. What is the height of the image? Then describe the location of the image, orientation (upright or inverted) of the image, the relative size of the image (larger or smaller than object), and the type of image (real or virtual).
Ray Diagrams For Concave Mirrors For The Following Mirrors And Corresponding Object Positions, Construct Ray Diagrams.
For case 4, merely construct the ray diagram. 2.!any ray travelling through the focus (f) is reflected parallel to the principal axis. Based on your drawing, list the characteristics of the image. An object is placed 4 cm in front of a.
Trace At Least Two Light Rays From Each Object.
Showing 8 worksheets for ray diagrams. Make sure that both c and f are present (at least one will be provided) 2. Ray diagrams for mirrors instructions although there are an infinite number of light rays, you only need to draw three rays to locate the image. These diagrams help in understanding the path taken by light rays from an object to our eyes after reflecting off a mirror.
B) state the characteristics (salt). For the following mirrors and corresponding object positions, construct ray diagrams. This booklet uses red for rays through the vertex, green for rays parallel to the principal axis, blue for rays through the Ray diagrams for concave mirrors for the following mirrors and corresponding object positions, construct ray diagrams. Make sure that both c and f are present (at least one will be provided) 2.
