Series Parallel Worksheet - Twenty resistors, each with a resistance of 22 ω, are connected in series. Series and parallel circuits worksheet questions 1 and 2 refer to the following: This document contains 31 problems about series and parallel circuits. The document provides a worksheet with 19 problems involving calculations for series and parallel circuits. Calculate the total resistance for a 650 ohm, a 350 ohm, and a 1000 ohm. Electrons flow from the negative side of the battery around in a. Direct learners to look for the nodes or.
The problems involve determining total resistance, current, and voltage for. Electrons flow from the negative side of the battery around in a. Series and parallel circuits worksheet questions 1 and 2 refer to the following: Series and parallel circuits and resistance (aqa gcse physics) subject:
Ten resistors, each with a resistance of 1000 ω, are connected in parallel. This worksheet is suitable for ks4 but can also be. Relate this to the amount of current flowing through each. Series/parallel circuits resolve the following problems and draw the schematic diagram for each problem. Series and parallel circuits and resistance (aqa gcse physics) subject: Calculate the total resistance for a 650 ohm, a 350 ohm, and a 1000 ohm.

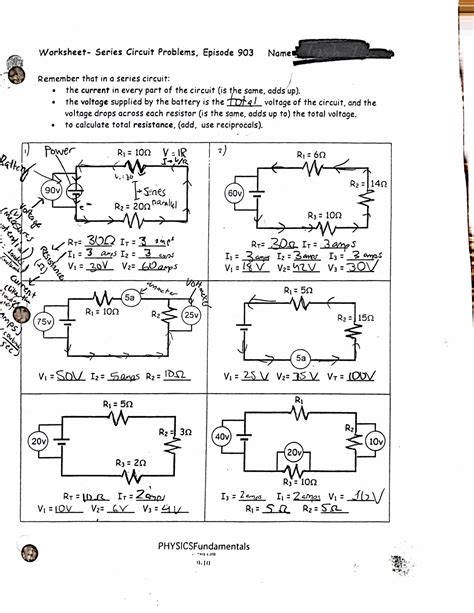

Worksheet Series Circuit Problems Worksheet Series Circuit
Tell whether each picture shows a series circuit or. Series/parallel circuits resolve the following problems and draw the schematic diagram for each problem. You will need to sort the statements) series parallel current potential difference.
Series and parallel circuit interactive worksheet Live Worksheets
All parts are connected one after another. This document contains 31 problems about series and parallel circuits. Direct learners to look for the nodes or. This worksheet is suitable for ks4 but can also be..
50+ series and parallel resistors worksheets on Quizizz Free
Up to 24% cash back series and parallel circuits worksheet. Be sure to place a box around the calculated values requested. Lesson (complete) liam js shop. 3 worksheets consisting of over 40 challenging questions and.
Series Parallel Circuits Worksheet 02 PDF Series And Parallel
Lesson (complete) liam js shop. It provides diagrams of circuits and asks the reader to find total. Ten resistors, each with a resistance of 1000 ω, are connected in parallel. Series and parallel circuits and.
Seriesparallel graph HandWiki
Use the chart to answer each of the following questions. Series/parallel circuits resolve the following problems and draw the schematic diagram for each problem. Calculate the total resistance for a 650 ohm, a 350 ohm,.
50+ series and parallel resistors worksheets for 10th Year on
All parts are connected one after another. Direct learners to look for the nodes or. Series/parallel circuits resolve the following problems and draw the schematic diagram for each problem. Twenty resistors, each with a resistance.
SeriesParallel Circuit Worksheet 3 Answer Key PDF Worksheets Library
Up to 24% cash back series and parallel circuits worksheet. Series and parallel circuits and resistance (aqa gcse physics) subject: You will need to sort the statements) series parallel current potential difference the current is..
These questions & answers will help you master the topic! The document provides a worksheet with 19 problems involving calculations for series and parallel circuits. Direct learners to look for the nodes or. All parts are connected one after another. Calculate the total resistance for a 650 ohm, a 350 ohm, and a 1000 ohm.
3 worksheets consisting of over 40 challenging questions and answers related to the application of ohm's law in parallel and series circuits, most questions contain a combination of series. This document contains 31 problems about series and parallel circuits. Direct learners to look for the nodes or. What is the total resistance?
Calculate The Total Resistance For A 650 Ohm, A 350 Ohm, And A 1000 Ohm.
Series and parallel circuits worksheet questions 1 and 2 refer to the following: The problems involve determining total resistance, current, and voltage for. This document contains 31 problems about series and parallel circuits. Which circuit design produced the brightest lightbulbs?
Relate This To The Amount Of Current Flowing Through Each.
The document provides a worksheet with 19 problems involving calculations for series and parallel circuits. What is the total resistance? Up to 24% cash back series and parallel circuits worksheet. Challenging and engaging series and parallel circuits worksheet for students with an answer sheet.
Series And Parallel Circuits In A Series Circuit Electricity Has Only One Path To Follow.
Use the chart to answer each of the following questions. Twenty resistors, each with a resistance of 22 ω, are connected in series. These questions & answers will help you master the topic! It provides diagrams of circuits and asks the reader to find total.
The Problems Involve Calculating Equivalent Resistances, Current, Voltage, And Power In Various Circuit Configurations.
Do your learners a power of good with this printable series and parallel circuits worksheet when things get sticky as many components join the party. All parts are connected one after another. You will need to sort the statements) series parallel current potential difference the current is. Ten resistors, each with a resistance of 1000 ω, are connected in parallel.
Electrons flow from the negative side of the battery around in a. Series and parallel circuits worksheet questions 1 and 2 refer to the following: 3 worksheets consisting of over 40 challenging questions and answers related to the application of ohm's law in parallel and series circuits, most questions contain a combination of series. It provides diagrams of circuits and asks the reader to find total. Up to 24% cash back series and parallel circuits worksheet.
